How to Set Up EV Chargers in Apartments, Homes and RWAs: Step-by-Step Guide

Electric vehicle ownership is growing fast across India in 2026, and home charging has become the default for most drivers. In fact, studies show roughly 80% of EV charging is done at home or at work. Home charging is not only convenient but also much cheaper: domestic power tariffs of roughly ₹6–₹10 per kWh mean a full charge costs a few hundred rupees, against ₹18–25 per kWh at many public fast chargers.

Governments are leaning into encouraging residential EV charging. Building codes increasingly require new construction to set aside EV-ready parking, and several states offer dedicated EV tariffs to residents who apply for a separate meter.

Still, getting the setup right takes some planning: your vehicle type, home’s electrical capacity, parking situation, and society’s approval process all factor in.

This guide walks through every step of the home EV charging journey in India, from picking a charger to getting RWA sign-off to wiring it safely.

Pro Tip: Charging overnight or during off-peak hours saves even more, especially if your state offers EV tariff (often ₹4–₹7 per kWh). Apply for a dedicated EV meter to get that rate.

Find the Right Charger

Every EV owner’s situation is different. Here’s how the three main charging setups compare.

Home Charging

Home charging is the most common setup: a private charger installed in your garage, driveway, basement, or assigned parking space. It suits homeowners, villa owners, and apartment residents with their own spot.

See how you can start an EV charging business at home

Most home chargers in India are AC wall-mounted units or smart sockets with a Type 2 connector, typically 3.3kW (16A) or 7.4kW (32A) on a standard 230V single-phase supply. Because you’re paying your home electricity rate, this is the cheapest charging option per kilometer, and you can charge on your schedule, usually overnight. For example, someone commuting to work daily can plug in before going to bed and wake up to a fully charged vehicle every morning.

Captive Charging

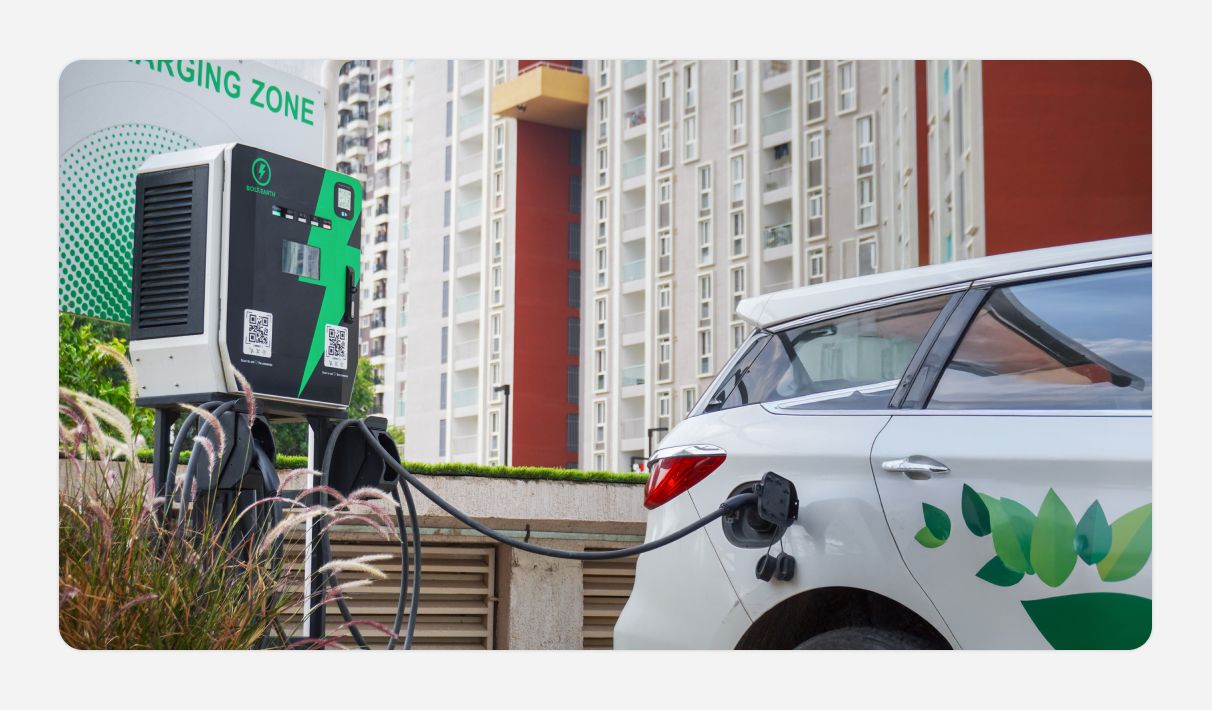

Captive charging refers to privately owned infrastructure shared within a community: apartment complexes, office campuses, and fleet depots, where charging is limited to residents, employees, or fleet vehicles.

These setups usually run multiple 7.4 to 22kW AC chargers, with larger facilities adding DC fast chargers for quicker turnaround. An app typically handles authentication, booking, energy monitoring, and billing, so installation and running costs get shared across users. A housing society might install a few smart chargers in the basement, letting residents book slots and pay only for what they use.

Public Charging

Commercial charging stations open to any EV users, found at shopping malls, highways, fuel stations, hotels, and airports, run by charging network providers as a business.

These stations typically offer higher-powered chargers, from 22kW AC up to 30-240kW DC, and are accessed via app, RFID card, or digital payment without installing anything yourself.

They’re best for long trips, emergency top-ups, or anyone without home charging access, like a highway fast charging stop between Bengaluru and Mysuru.

Read our detailed guide on Public vs. Captive Charging

Choosing a Charger for Your Vehicle

Your vehicle’s battery size and charging profile determine the ideal charger. Below are typical figures by vehicle category:

• Two-wheelers (1.5–5kWh batteries) are the easiest and cheapest EVs to charge at home. Most manufacturers include a portable AC charger for a standard 15A socket, though a 3.3kW AC smart charger is a safer long-term option. A full charge takes 2-5 hours, so overnight charging comfortably covers most daily commutes.
• Three-wheelers (5–15kWh) need a bit more power, typically 3.3-6kW AC chargers, while larger cargo or passenger variants benefit from a 7.4kW. Charging takes 3-6 hours, which suits overnight charging for commercial operators.
• Cars (19-80+kWh) see the biggest impact from charger choice. Most homeowners go with 3.3kW or 7.4kW AC wallbox for faster overnight charging, and homes or apartment complexes with a three-phase electrical connection can set up to 11 or 22kW chargers for multiple EVs or heavy daily use. Public DC fast chargers can take a car from 20% to 80% in under an hour, but they’re built for highway travel, not routine home charging. For most residential setups, 7.4kW is a sweet spot for speed, cost, and future readiness.
• Buses (100–500+kWh) require dedicated high-capacity charging infrastructure. These vehicles are generally charged at fleet depots using industrial-grade chargers ranging from 40kW to over 150kW, depending on operational requirements. Many city bus operators charge vehicles overnight, while rapid charging solutions are used for high-frequency routes that require quick turnaround times during the day. Since these chargers require commercial electrical infrastructure, they are not suitable for residential installations.
• Electric trucks (100–600kWh): To minimize vehicle downtime, they rely almost exclusively on high-power DC fast chargers, usually rated at 100 kW or higher. Charging times vary based on battery size and charger capacity, but commercial fleet operators typically combine overnight depot charging with fast charging during long-distance operations. Like electric buses, truck charging infrastructure is designed for logistics hubs, warehouses, and fleet depots rather than residential properties.

Vehicle Type	Verified Battery (kWh)	Recommended Charger	Typical Duration (0–100%)	Power Supply
2-Wheelers	~1.5–5	1–3.3kW AC (Standard socket or Smart Socket)	2–5 hours (AC)	Single-phase 5–16A
3-Wheelers	~5–15	3–6kW AC	3–6 hours (AC)	Single-phase 16–32A
Cars	19–80+	7.4kW AC or 11–22kW AC (3-phase); 30–60+kW DC	4–11 hours (AC)   45–90 min (DC)	Single or Three-phase, 32A+
Buses	100–500+	50–150+kW DC Fast Depot Chargers	2–5 hours (DC depot charging)	Three-phase industrial
Trucks	100–600+	100–350+kW DC Megawatt / Fast Chargers	1.5–4 hours (DC fast charging)	Three-phase industrial

How Much Power Do You Actually Need?

A charger’s power (kW) tells you how fast it delivers energy,  which isn’t the same as your battery’s capacity (kWh).

For example, a 7.4kW charger fills a 30kWh car battery in about 4-5 hours; a 3.3kW charger takes roughly 10-11 hours for the same job.

Here’s the myth worth busting:    A very common point of confusion for first-time EV owners is matching the charger’s power to the vehicle’s capacity. If you buy a 7.4kW home charger but your car’s maximum intake capacity is only 3.3kW, the charger isn’t broken and your car won’t be damaged.  The box on your wall isn’t really “the charger”, it’s a smart, safe extension cord. The actual charger is a computer built into the car itself, called the On-Board Charger or OBC.  Think of it like plugging your phone into a laptop’s charging brick. Your phone doesn’t explode; it just takes the exact amount of power it needs and leaves the rest.   When you plug a 3.3kW car into a 7.4kW wall box, the two negotiate automatically; the car asks for 3.3kW, and the wallbox throttles down to match. Buying the bigger wallbox is still worth it, since it future-proofs your setup for your next EV.

Three-phase supply, common in large buildings, enables 11kW (16A×3) or 22kW (32A×3) for meaningfully faster charging.

A few things worth checking before you decide:

• Sanctioned Load: Your home’s existing electricity load, often 5-10kW, may need an upgrade for a 7.4kW charger. Check with your DISCOM, and consider a separate meter so charging doesn’t compete with your household appliances.

• Daily Driving: Estimate your typical range needs. For instance, 50 km a day (roughly 5-10kWh) is comfortable overnight on a 3.3kW charger. At 150 km a day (15-20kWh), a 7.4kW charger finishes charging faster and fits daily life better.

• Future Needs: If a second EV or heavier use is likely, it may be worth installing a higher-capacity charger (11–22kW), or at least reserving wiring space now. Retrofitting later could be costlier.

Charger (kW)	Power/Amps (Phase)	Suitable Vehicles	Real-World 30 kWh Charging Time	Home Wiring Baseline
3.3kW	230V single, 16A	2W/3W & small cars	~10–11 hrs (Incl. efficiency loss)	16A MCB, 4 mm² copper cable
7.4kW	230V single, 32A	Cars, larger 3W	~4.5–5 hrs (Incl. cell balancing)	32A MCB, 6 mm² copper cable
11kW	400V 3-phase, 16A×3	Cars, small fleet	~3.2 hrs	3×16A MCBs, 4 mm² per phase
22kW	400V 3-phase, 32A×3	Cars/fleets, public	~1.5 hrs (If car supports 22kW AC)	3×32A MCBs, 6 mm² per phase

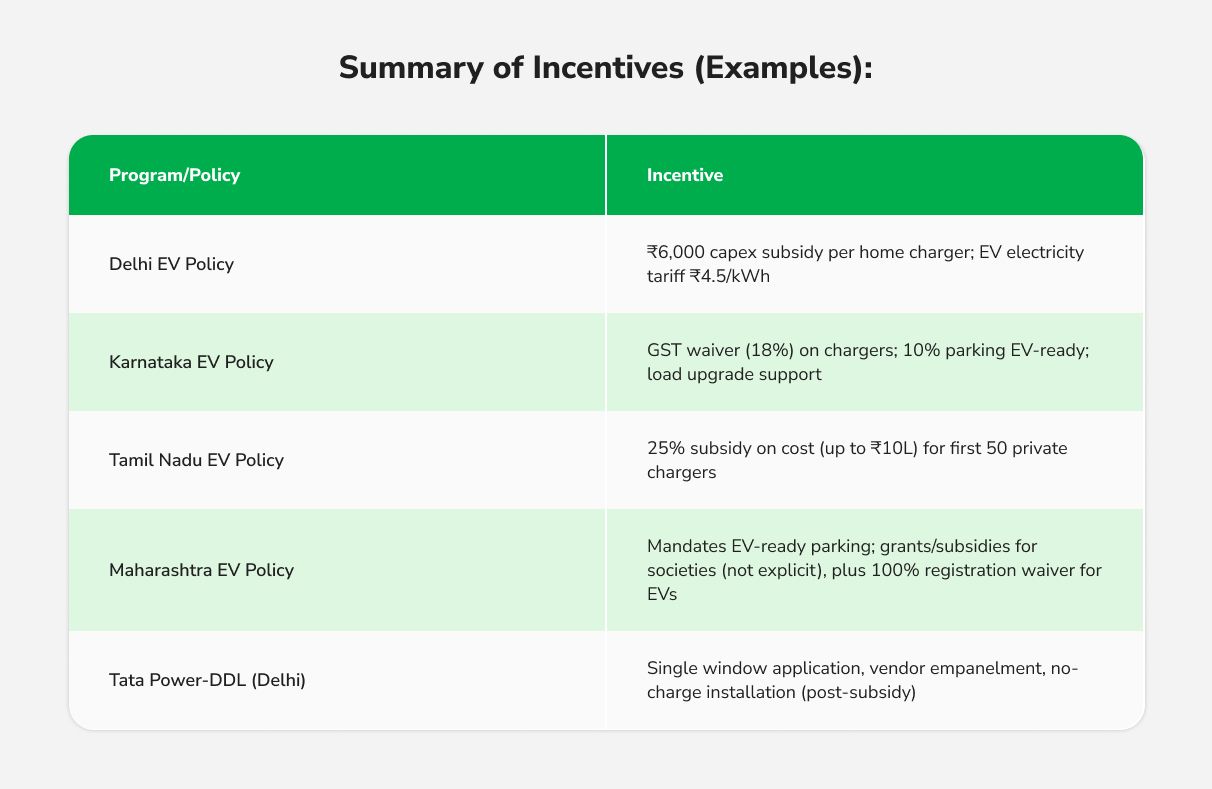

Did You Know? Several states, including Delhi, Maharashtra and Karnataka, now offer dedicated EV tariffs as low as ₹4.50–₹6.50 per kWh on a separate EV meter. This can reduce charging costs further.

Check out what different states are doing to reduce EV tariffs

Where Should You Install Your Charger?

Choosing the right location ensures safety, convenience, and compliance:

• Home/Villa:
  Mount the charger on a wall near your parking spot, ideally within 20 meters of your meter or distribution board (DB) to keep cable length short. If indoor (garage), ensure the space is dry and ventilated. For outdoors, you’ll need a weather-resistant charger. Keep it 0.5-1.5 meters off the ground, away from water sprinklers or pipes.

• Apartment Parking:
  Wall or pillar mounting in your allotted parking spot works well, often in a common basement or podium level. Fire safety rules permit private chargers on all open parking floors, including basements and podiums, so a higher-floor podium spot isn’t a barrier.

• Common Areas (RWAs):
  For shared RWA installations, pick a well-lit, accessible area close to the main DB or meter room, so new circuits or sub-meters are easy to add, and make sure chargers don’t block walkways or emergency exits.

• Wiring Considerations:
  Route cable in conduit from the DB to the charger. Use 6 mm² copper cable for a 32A circuit (7.4kW), stepping up to 10 mm² for runs over 30 meters. Install a dedicated 40A Type-C MCB and a 30mA Type-A or B RCD near the meter, plus a Type-2 surge protector for grid spikes.

• Future Expansion:
  If you might add chargers later, leave extra conduit space now rather than opening up walls again.

Pro Tip: Always install a new dedicated earth pit for EV charging, targeting under 5Ω resistance. Many older buildings have poor earthing, which can compromise the safety devices your charger depends on.

Installation & Commissioning Process

A smooth installation follows seven steps:

1. Site Assessment:
   A qualified electrician checks that your power supply can handle the intended current (16A for 3.3kW, 32A for 7.4kW), confirms your sanctioned load, and flags whether you need an upgrade or a separate meter.

2. Electrical Setup:
   A dedicated breaker (MCB) and residual-current device (RCD) go on your main board (a 7.4kW charger typically needs a 40A Type-C MCB and 30mA Type-A RCD), along with a surge protection device (SPD), and cable gets run in conduit to the mounting point.

3. Mounting the Charger:
   The charger unit is fixed to a wall or a pedestal at 0.15-1.5 meters height. Bolt.Earth’s 3.3kW Pro series, for example, is weatherproof (IP44) and works either way.

4. Wiring Connection:
   The charger’s input connects to the new breaker circuit, all connections tight and weather-sealed if outdoors, and the output connector gets tested for continuity and insulation.

5. Digital Onboarding:
   Once powered, activate the smart features: download the Bolt.Earth EV Charging app, add your charger by scanning its QR code, and set up Wi-Fi or cellular connectivity (the Pro 4G models have built-in SIM) for real-time remote monitoring.

6. Testing & Commissioning:
   A test charge confirms the unit dispenses current safely. Bolt.Earth issues a commissioning certificate per CEA and BIS rules once it passes inspection.

7. Training & Support:
   Your installer walks you through starting and stopping a charge, switching modes (private/public), reading the LED indicators, and reaching support if something goes wrong.

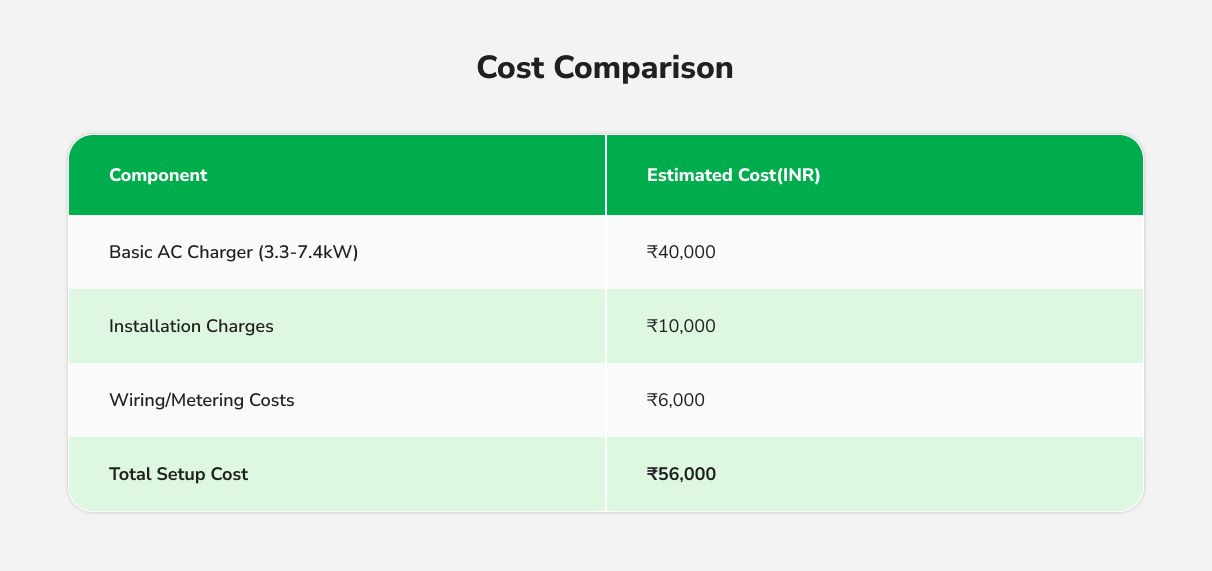

How Much Does EV Charger Installation Cost in India?

Costs depend on charger power, wiring length, and site complexity. Ballpark 2026 figures for India, GST and labor included:

Item	Estimated Cost (₹)	Notes
AC Charger (3.3kW)	4,000 – 6,000	Basic smart socket for two-wheelers; often with SIM
AC Charger (7.4kW)	20,000 – 45,000	The standard home car charger
AC Charger (11kW, 22kW)	35,000 – 75,000	For three-phase or multiple EVs
DC Fast Charger (30kW)	~400,000 – 500,000	Used by fleet depots; not typical home purchase
Cable & Conduit (per m)	₹100 – 200	6 mm² copper for 7.4kW; thicker/longer lines cost more
Installation & Wiring	10,000 – 20,000	Professional electrician and materials
Dedicated EV Meter	3,000 – 5,000	New sub-meter for EV tariff
Service Load Upgrade	Varies (₹5k – 15k+)	If a higher sanctioned load is needed
Annual Maintenance	2,000 – 5,000	Periodic check-up; warranty renewals

Bolt.Earth waives up to ₹2,499 in technician fees for professional installation, depending on whether you buy a Smart Socket or a Blaze Wallbox).

Your main costs will be the hardware itself and any long cable runs or load upgrades. Remember that opting for high-power (3-phase) chargers will bump up wiring and breaker costs.

Pro Tip: A longer cable run (30 meters instead of 10) can easily double your wiring bill, so placing the charger close to your meter or DB pays off.

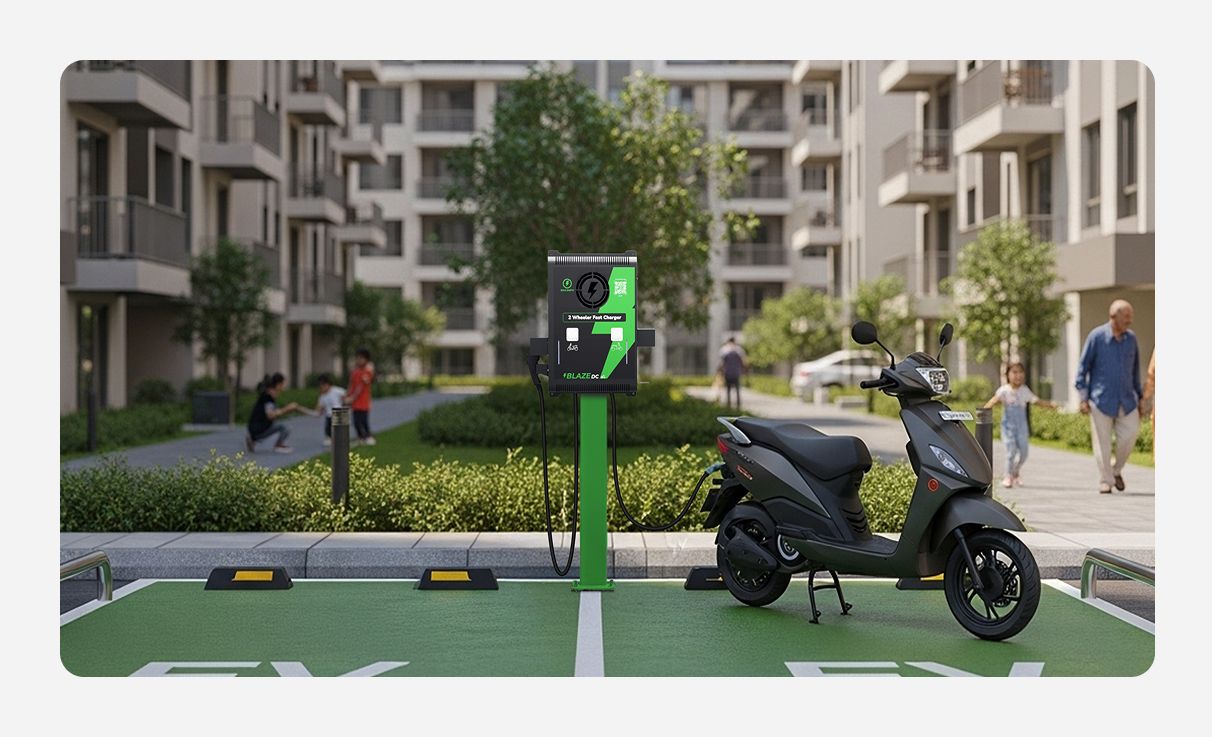

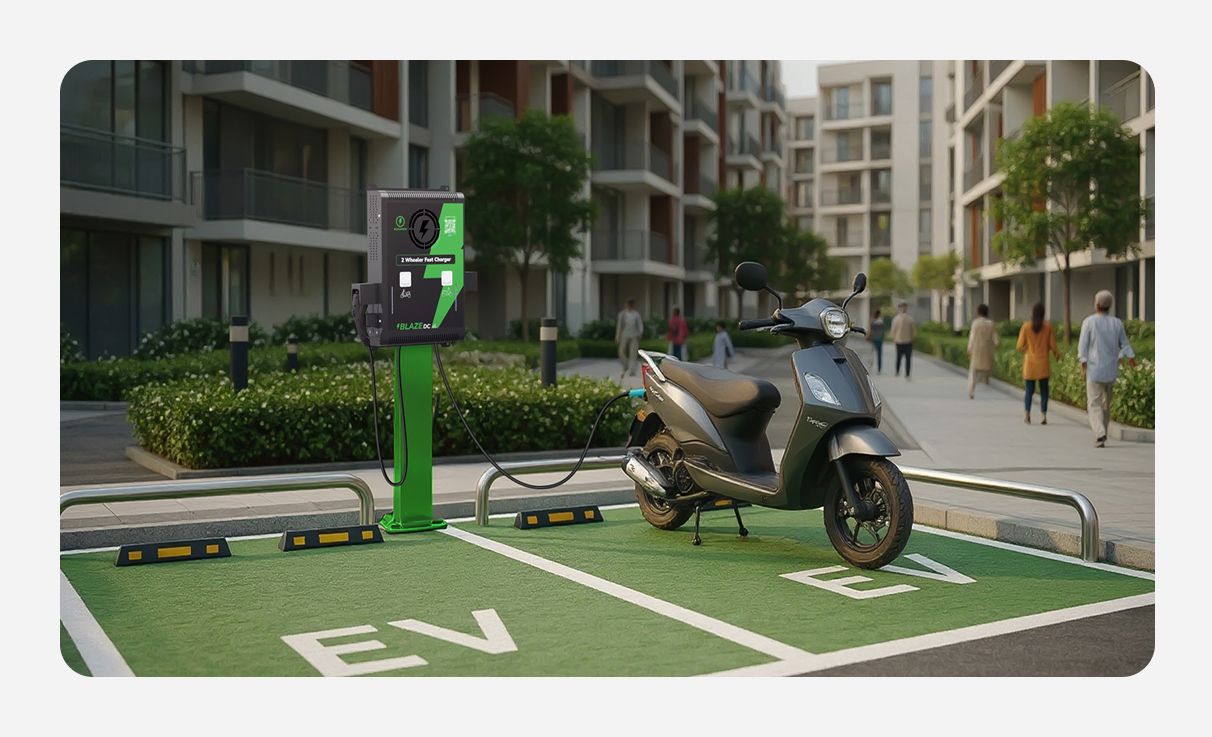

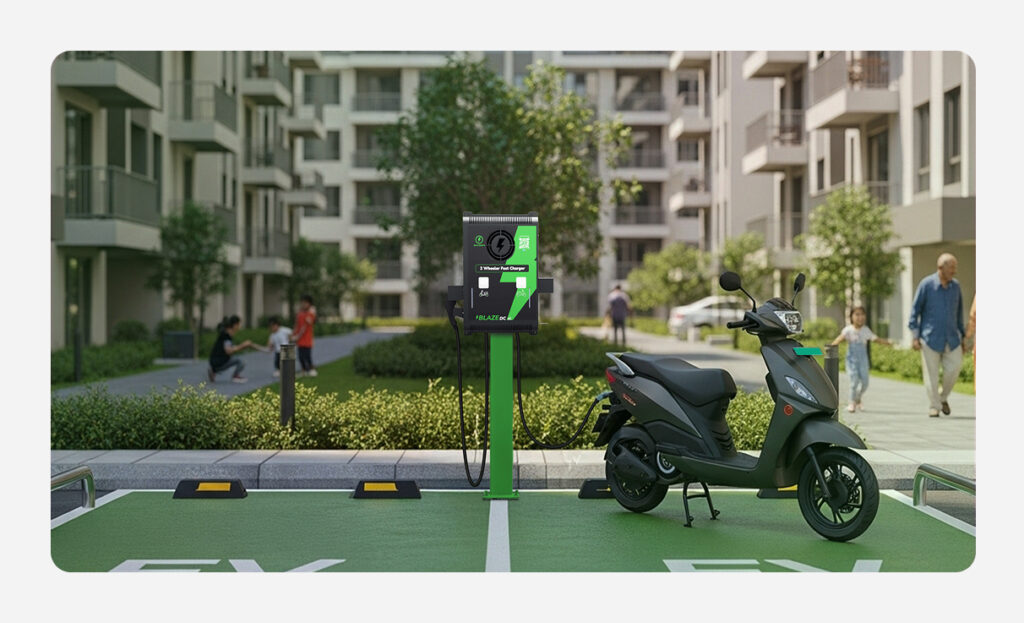

Apartment & RWA Installation Guide

Installing chargers in apartments and societies takes more coordination than a standalone home, since parking is society property.

• RWA Approval:
  You’ll need your society’s consent, but the rules increasingly favor residents: a 2022 Maharashtra circular mandates an NOC within 7 days if safety norms are met, and the Supreme Court has recognized parking as common property requiring society consent for modifications. In practice, prepare a resolution or AGM approval to formalize the installation.

• Parking Spot Placement:
  Chargers ideally go in podium or ground-level parking where fumes can disperse. Though fire safety rules explicitly allow private chargers on basement or podium levels, the restriction is only on automated tower or puzzle parking. A charger on a higher podium floor is still permitted. Keeping a copy of the local fire advisory handy helps if RWA needs reassurance.

• Electric Load:
  Many societies add a separate feeder or sub-meter for EVs, which is worth pushing for since it unlocks the subsidized EV tariff and keeps billing fair. On a shared meter, you’ll need a transparent cost-sharing arrangement, whether that’s apportioned in monthly dues or a peer-to-peer billing setup. Some RWAs set up a small charging shed with a handful of chargers and allocate costs by booking slot.

• Shared Models:
  Instead of individual units, some societies install 3-5 community chargers that residents book through an app and pay for by usage. This avoids everyone digging separate trenches. Bolt.Earth also supports peer-to-peer hosting, where a resident can list their own charger for neighbors to use.

Common Objections & Myths

“It’ll cause fires” Properly installed chargers with MCB and RCD  protection are safe, and fire guidelines already permit home charging on approved floors.  “It’ll overload our supply” State EV rules direct DISCOMs to fast-track connections and upgrades for chargers, and societies can apply for added capacity or separate lines.  “It’s commercial use”  Charging your own car isn’t a business; no special license is required, and even sharing chargers with neighbors is allowed under peer-to-peer models.

Did You Know? If your RWA remains resistant, cite the official rules directly, offer to cover any incremental electricity costs, and propose metered smart chargers to keep usage transparent. If that doesn’t move things along, residents can raise the matter with local authorities or cooperative housing regulators; recent court orders have prompted societies to update their bylaws to accommodate EV infrastructure.

Common Mistakes to Avoid When Installing EV Chargers

• Buying the Cheapest Charger: Ultra-low-cost units often skip safety certifications. Stick to ARAI- or BIS-certified chargers. Saving ₹5,000 on a no-name import isn’t worth the risk to your home or your warranty.

• Ignoring Electrical Load: Don’t assume your existing wiring can handle a new charger. Check your sanctioned load first;  overloading your panel trips breakers and can damage other appliances.

• Poor Cable Installation: Never run a charger off an extension cord or a 6A socket. A 16A-plus charger through undersized wiring is a real fire risk. Use properly sized cable in conduit (typically 6 mm² copper for 32A), and keep cables off the floor.

• Skipping RCD or Surge Protection: An RCD is mandatory, not optional, to prevent electrocution. Ordinary fuses don’t do the same job. Pair it with a Type-2 surge protector, since India’s grid sees voltage spikes that can destroy unprotected charger electronics.

• Not Planning Ahead: Installing only for your current EV is shortsighted if a second EV or a bigger battery is likely. A higher-capacity charger or spare conduit is cheaper than a rewiring job later.

• Skipping Licensed Installation: DIY or untrained installation often misses proper earthing and grounding, which is how faulty setups end up causing fires or shocks.

• Non-compliance: Skipping the commissioning certificate can put you in violation of CEA rules. Get the chargers inspected and certified.

Choosing the Right Plan

Bolt.Earth’s tiered plans scale with how much charging  you’re  managing:

• Basic: Up to 3 chargers, no upfront fee, 15% commission on energy sales. Ideal for individual homeowners or a small shared setup.

• Premium: More than 3 chargers, no upfront fee, 20% commission. Best suited for apartment complexes or offices running several chargers.

• Enterprise: Built for large deployments and fleets. Requires an annual subscription plus just 2.5% commission. Suitable for RWAs or fleet operators who can handle a fixed fee for lower ongoing costs.

The right choice comes down to how many chargers you’re running and whether you plan to monetize charging through peer-to-peer access. A single home charger doesn’t need more than Basic. A society with 5 to 10 EV owners should look at Premium. A large complex or fleet operator with dozens of EVs across sites is usually better off on Enterprise’s low commission.

Bolt.Earth’s free site assessment can confirm which tier actually fits your setup so you’re not overpaying commission for features you don’t need.

Pro Tip: Even on the Basic or Premium plan, you get 24/7 support and Bolt.Earth’s app/booking platform. Choosing the right plan is about finding the balance between scale and cost.

Final Thoughts

Home charging is what makes EV ownership actually convenient in India: it’s cheaper than public charging and increasingly the default as more homes and societies get set up for it. Getting there means matching your charger to your vehicle and daily driving, getting the electrical work done properly, and following the safety and approval steps that apply to your situation, whether that’s a villa, a flat, or a shared society setup.

The right charger depends on your vehicle’s battery and how much you drive. Government rules are making it easier for societies to support EV charging, though the specifics vary by state, so it’s worth checking what applies to yours rather than assuming a single national number. Skip the cheap, uncertified units and the shortcuts on wiring, and a charger installed properly now saves you a harder, more expensive upgrade later.

Bolt.Earth handles the full process, from charger selection and RWA approvals to installation and app setup. If you’re ready to move forward, Bolt.Earth’s team can walk through your specific setup and recommend a plan that fits.
